INTRODUCTION
SCS TEMPORARY STEEL TRUSS BRIDGE
- SCS Temporary Steel Truss Bridge is a Pre-Fabricated truss bridge that using Main Truss System.
- Simple truss design, which is follow the Warren Through Truss design.
- Its Length is Flexibility, can be combined up to 54m single long span.
- The width of the bridge is 4m (single carriageway) and 8m (dual carriageway).
- Designed to HB30 Loading followed the code of BS5400.
- Each of the segmented main truss (6m long) can be interlocked by custom-made end plate (shear key) and tighten up with the high strength bolts & nuts.
- Precast deck slab panel is pinned on the secondary beam for easy installation and dismantling.
SCS TEMPORARY STEEL TRUSS BRIDGE
ADVANTAGES
Efficiency In
Construction Process
Heavy Loading
Capacity
Economical
Can Be Reuse,
100% Recycle
Provide Rental Of Equipment For Construction
Provide Rental Of EquipmentFor Construction
SCS TEMPORARY STEEL TRUSS BRIDGE
DETAILS

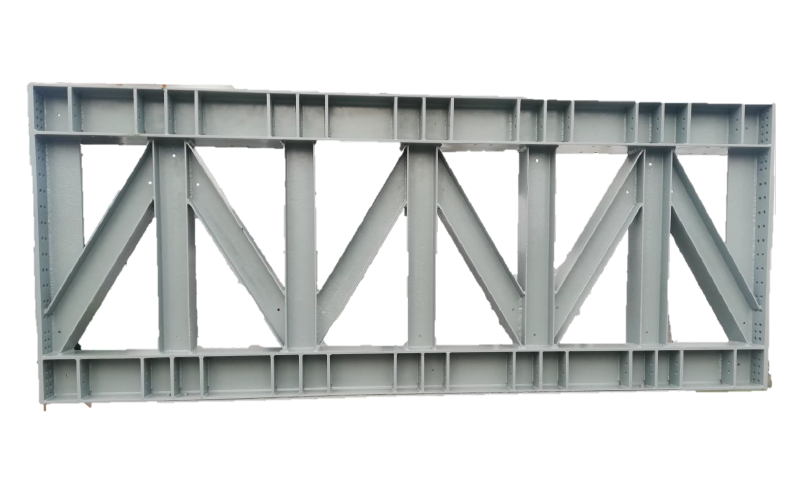

Main Truss

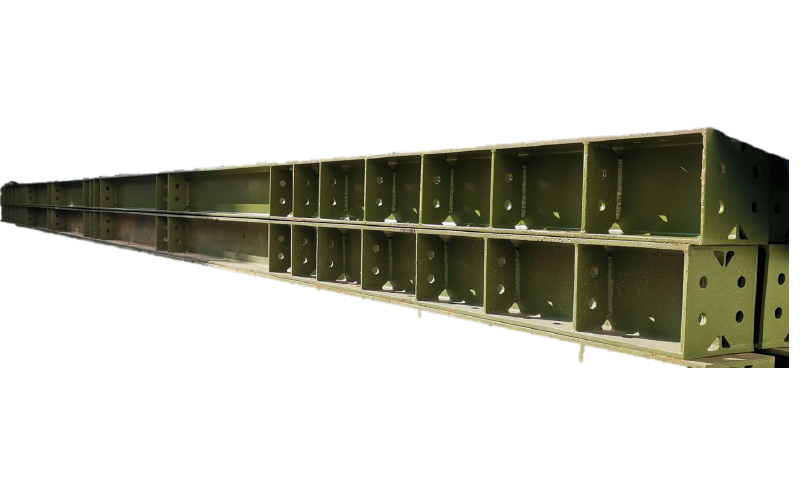

Secondary Beam
Precast Deck Slab Panel
SCS TEMPORARY STEEL TRUSS BRIDGE
APPLICATION
- Temporary Road Diversion

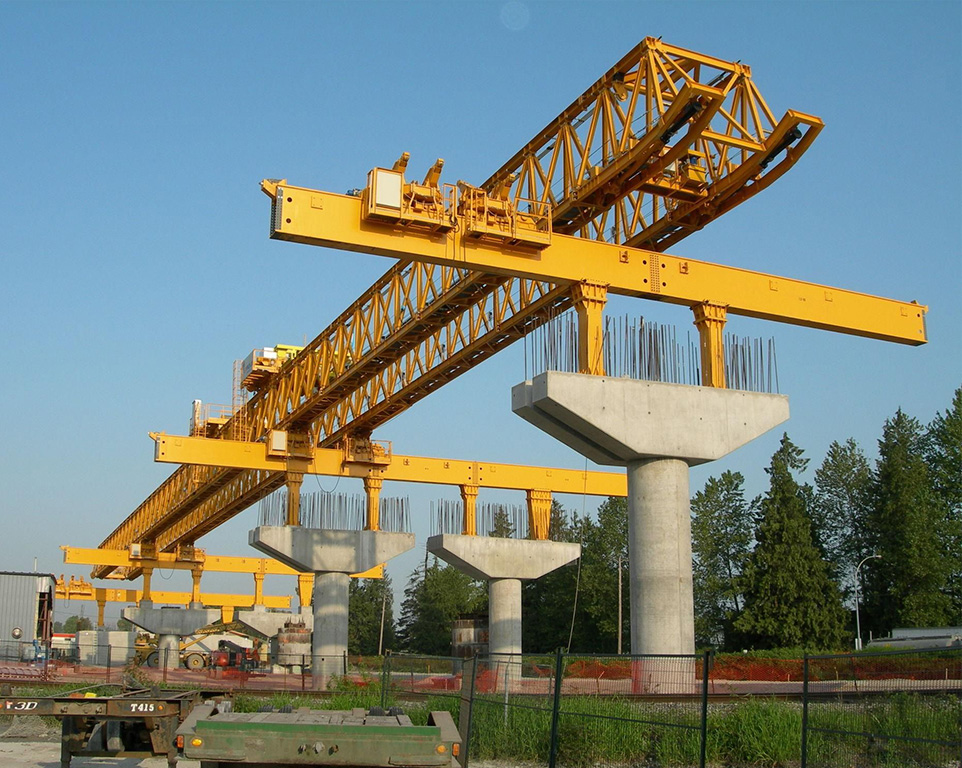

- Beam Launching Girder
- Temporary Supporting Structure
PROCEDURE
Initial Phase
Intermediate Phase
Final Phase

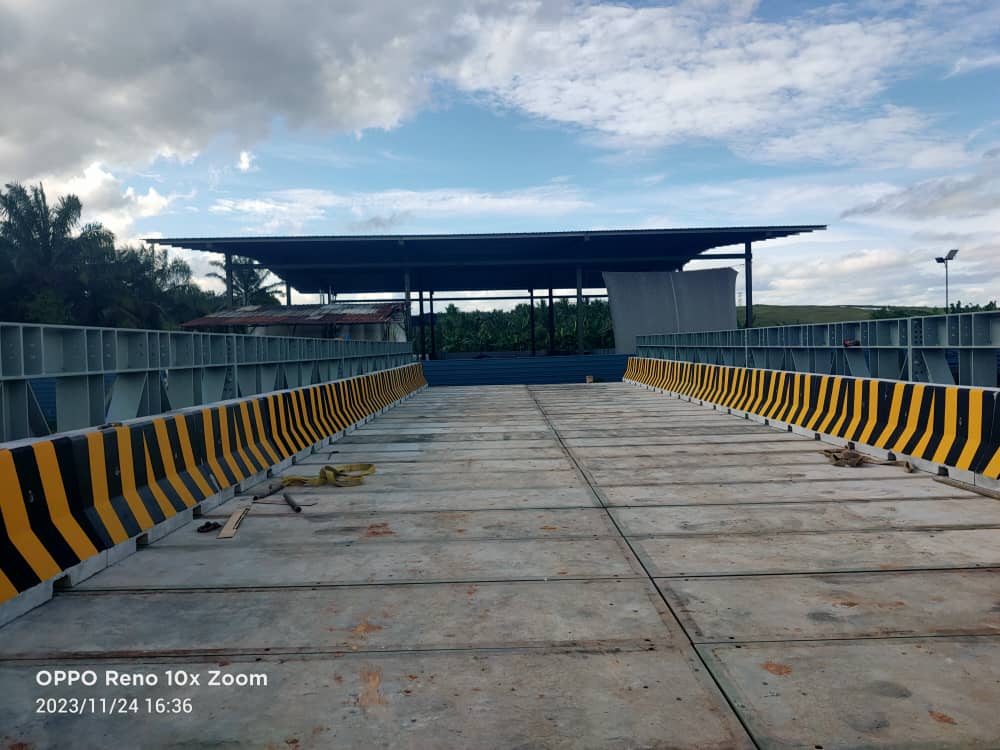

End Product

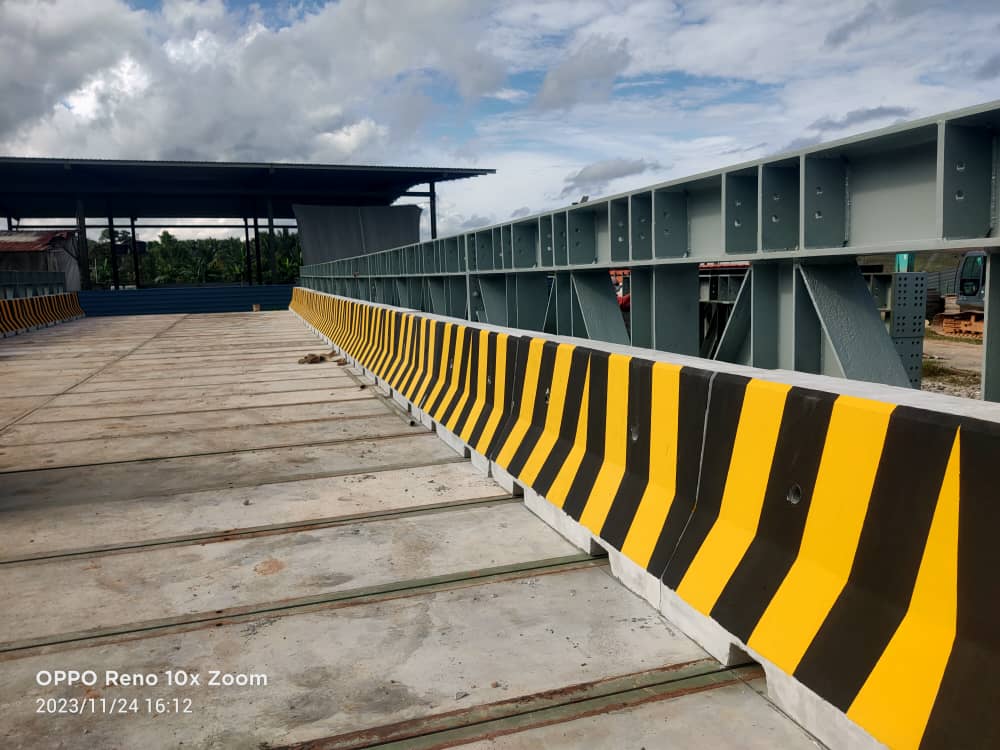

End Product
